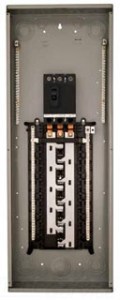

MFG Name: Siemens Automation
MFG Part #: P4260B3200CU
UPC: 66264385388
Online Part#: SIE P4260B3200CU

Approval: UL
Circuit Configuration: 3 PHASE 3/4 WIRE
Current Rating: 200 AMPERE
Feed Location: BOTTOM
Item Number: 85388
Maximum Number of Spaces: 42
Size: 14 1/4 INCH W X 3 7/8 INCH D X 42 INCH H
UNSPSC: 39121101
Additional Information: RATED 60/75 DEG
Bus Material: TIN PLATED COPPER
Cover Type: FLUSH/SURFACE, SLIDE HINGE DOOR
Enclosure Type: NEMA 1, INDOOR
Interrupting Rating: 22 KILOAMPERE
Maximum Number of Circuits: 60
Model: PL
Type: MAIN BREAKER/CONVERTIBLE
Voltage Rating: 240 VAC 3 PHASE 3 WIRE, 120/208/240 VAC 3 PHASE 4 WIRE
